Smart Technology And Integrated Systems Distribution

VIZIONTECH — VTM-ITC09-AI

AI All-in-One Enforcement Camera | Strategic Partner | viziontech.uk

Overviews

-Viziontech is a UK-based specialist in intelligent traffic enforcement and surveillance camera solutions (www.viziontech.uk | sales@viziontech.uk)

- The VTM-ITC09-AI is a premium all-in-one AI enforcement camera integrating a 9MP sensor, AI vehicle analytics, IR illuminators, and GPS into a single housing

- Designed for intelligent transportation systems (ITS), smart city deployments, traffic violation enforcement, and traffic data collection

Key AI Capabilities

- Automatic Number Plate Recognition (ANPR) — deep learning algorithms for accurate license plate character recognition

- Speed detection 0–300 km/h; motor vehicle violations (red light, wrong-way driving, illegal lane change, no seatbelt, phone use while driving) and motorcycle violations (passenger overload, no helmet)

- Vehicle type recognition (SUV, bus, truck, MPV, etc.), color recognition (11 colors), and brand/logo recognition (80+ brands: Toyota, BMW, Mercedes, Honda, Ford, Hyundai, Kia, and more)

- Driver and passenger face detection; traffic flow statistics including vehicle count, average speed, queue length, and lane occupancy

Key Technical Specifications

- Sensor: 9MP 1.1" GS-CMOS | Resolution: 4096×2336 @ 50fps | WDR: 120dB | Min. illumination: 0.001 lux

- Lens: Motorized Vari-focal P-Iris 16–40mm, F1.4 | Horizontal FOV: 22.3°–53.0° | IR illuminator: 8 LEDs, 23–30m range, reduced light pollution

- Connectivity: Dual Gigabit Ethernet, GPS, Micro SD up to 256GB (ANR), USB 3.0, RS-485/RS-232, ONVIF | Protection: IP66, IK10, -40°C to +65°C

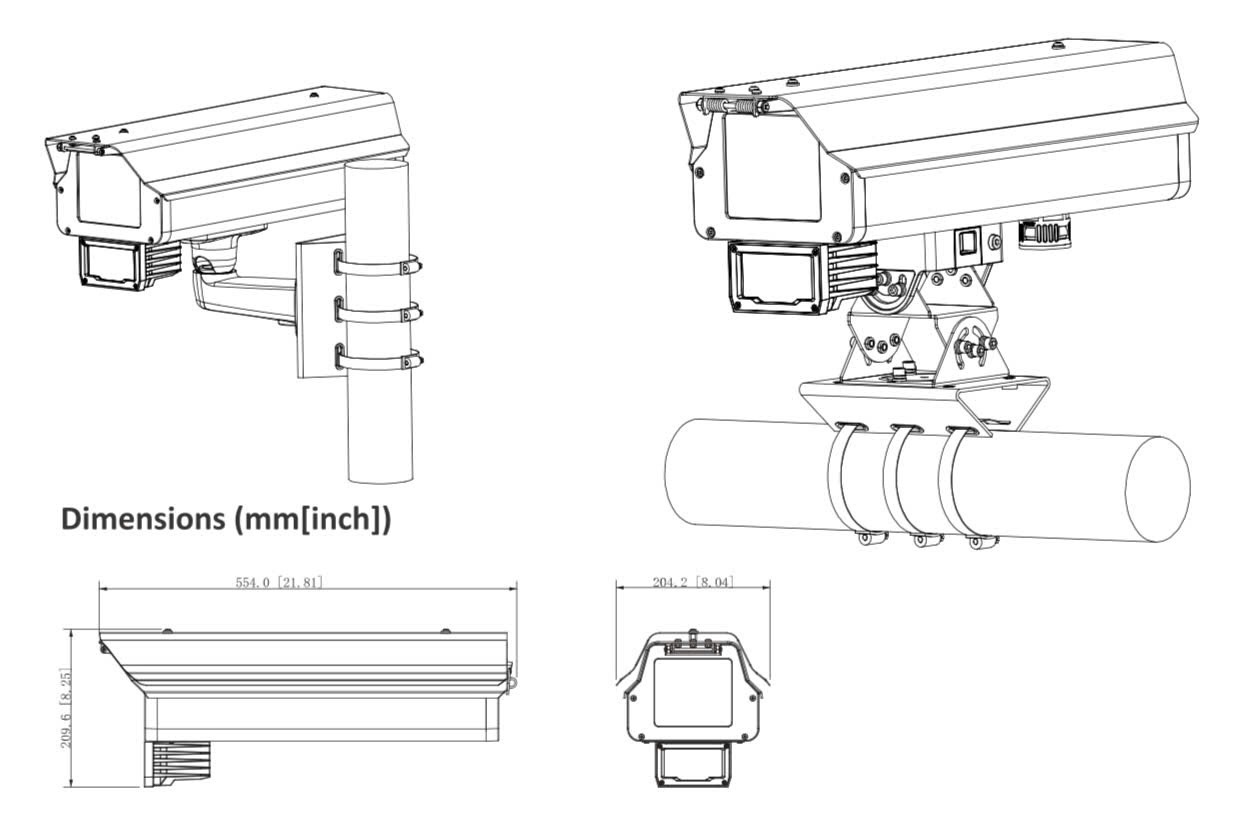

- Dimensions: 554×204×210mm | Net weight: 4.6kg | Power: 100–240VAC, ≤20W | Installation: center mount (4 lanes) or side mount (3 lanes)

CHONGQING CHUANGDI TECHNOLOGY DEVELOPMENT CO., LTD.

重庆创迪科技发展有限公司 | Strategic Partner | Headquartered in Chongqing, China
Overviews

- A specialist in smart transportation technology, operating under the mission: "Smart transportationmakes travel safer and more convenient"

- Products comply with international standards includingEN12966 (Europe), ETL/CETL (North America), and IP65/IP66; certified by China's national testing bodiesCMA and CNAS

- Factory currently under development in Vietnam

Core Product Line

- Variable Message Signs (VMS) — LED modules P20.833 DIP & P10.416 SMD: die-cast aluminum enclosure, weight≤35 kg/m², IP66, operating range -40°C to +60°C, service life 100,000 hours

- Radar Speed Limit Signs: vehicle detection range 0–300 m, real-time speed display with smiley/sad face feedback, solaror AC power, automatic speeding alerts

- Snapfit Traffic Signal Lights (JD300-3): plastic or die-castaluminum housing, IP55–IP65, service life >50,000 hours, response time <100ms

- Foldable Toll Lane Displays: all-aluminum frame ≤18 kg/m², 10mm pixel pitch, brightness ≥8,000 cd/m², 0–30° adjustable screen angle, remote monitoring and data analytics

P5 ETC Highway Toll Displays (CDFX01): integrated trafficlights and audible alarms, compliant with GB/T27879-2011, IP65, MTBF ≥15,000 hours, service life >100,000 hours

Competitive Advantages

- Full compliance with European and North American export standards (EN12966, ETL, CETL) — ready for deploymentin high-specification international markets

- Modular design: fast installation, front or rear maintenanceaccess, multi-protocol communication support (RS232/RS485/4G/NTCIP 1203/MODBUS)

- Customization available on request: dimensions, speed limit settings, enclosure color, and power source (grid or solar)

- 6 Year Service Warranty
